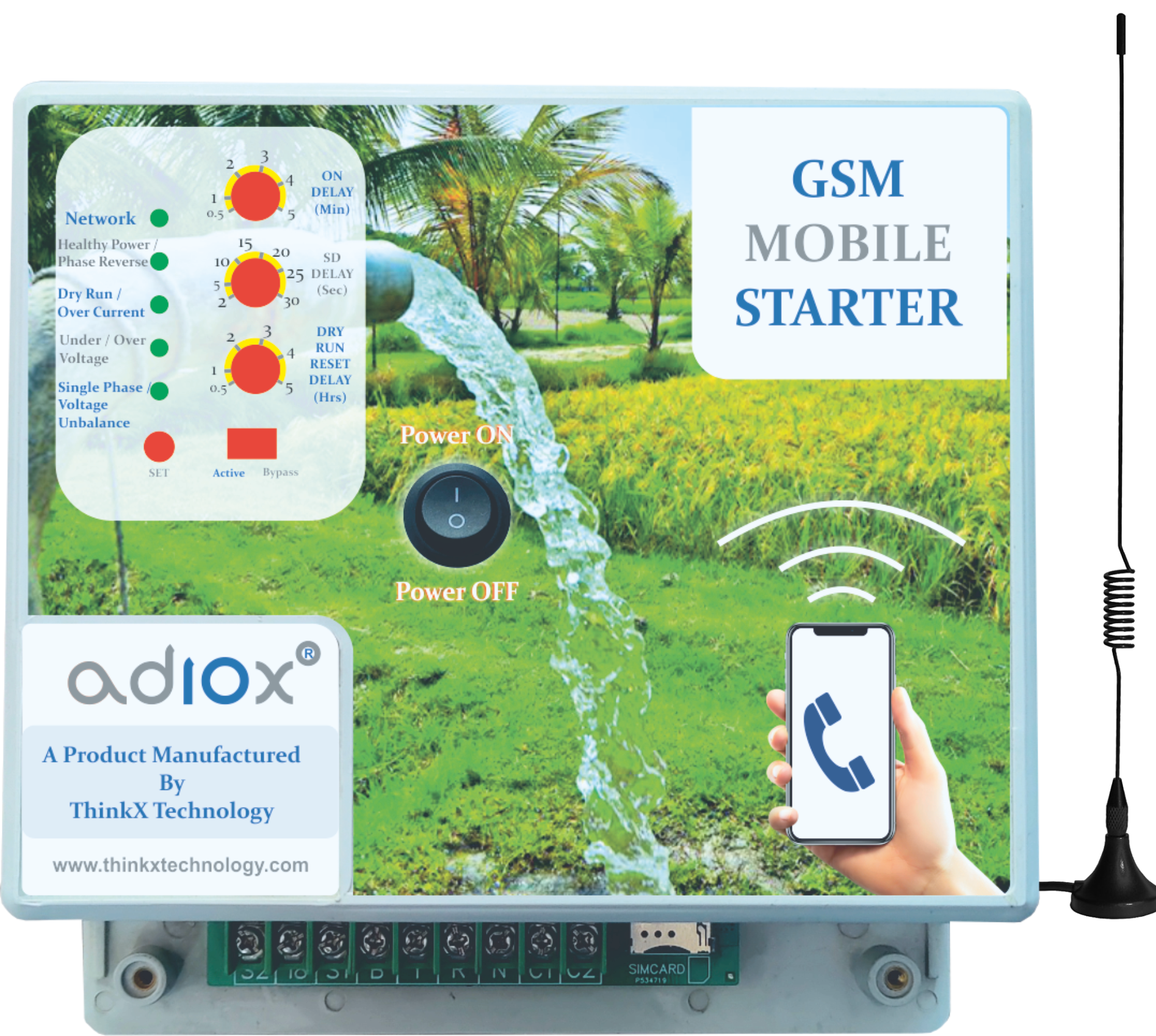

GSM Mobile starter (1 phase)
GSM Remote Pump Controller
The GSM Remote Pump Controller is a device that allows remote control and monitoring of electric motors, agricultural pumps, or submersible pump sets through a mobile phone. This GSM-based mobile-operated pump controller enables users to switch ON and OFF pump sets or electric motors via a cell phone from any location.
This SMS or GSM pump motor controller is designed to help farmers easily manage their agricultural pump sets. It allows scheduling for automatic pump start and stop, enhancing efficiency. Additionally, it helps prevent risks such as snake bites at night while saving water, time, and electricity. The system requires a SIM card for operation.
FEATURES:
- Size: 165 x 162 x 67 mm
- Supply: 230 VAC 50Hz (1 Phase)
- Protection: Single Phase, Reverse Phase, Overload, Dry Run, Under Voltage, Over Voltage & Voltage Unbalance (All Settable)
- Indication: Network, Power, All Fault Indication of above
- Voltage : Shows voltage of phase
- Current : Shows current consumption during motor running
- Time Setting: On delay timer (0.5-5Min), Star delta timer (2-30 Sec) & Reset time delay (0.5-5Hrs)
- Motor Power: 1-50 Hp motor compatible
- Mobile operated up to 5 users
- Rechargeable battery inbuilt, 24 hrs backup
- During No Electricity, change setting via SMS or call via battery backup
- IVRS technology
- Pump on/off with SMS or CALL
- Auto/Manual mode enabled
- Set any fault with mobile setting Multiple On-off timer facility
- Power On SMS and call alert
- Power On SMS and call alert
- Feedback Call & SMS Alert
- Recharge Reminder
- Warranty Check Facility via SMS
- Dry Run facility
- Will shut down the motor and keep it safe if the following error occurs
- -Two-phase lighting
- -Electrical face turning upside down
- -When the motor is overloaded, it turns the motor off.
- -Dry runs when the motor fails to take up water.
